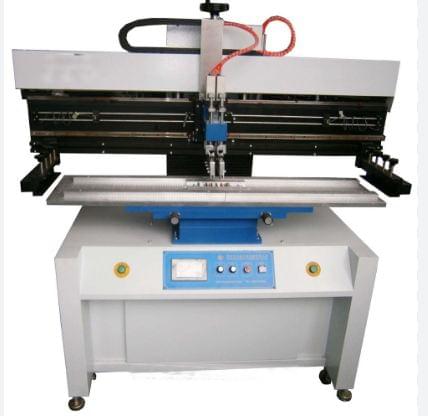

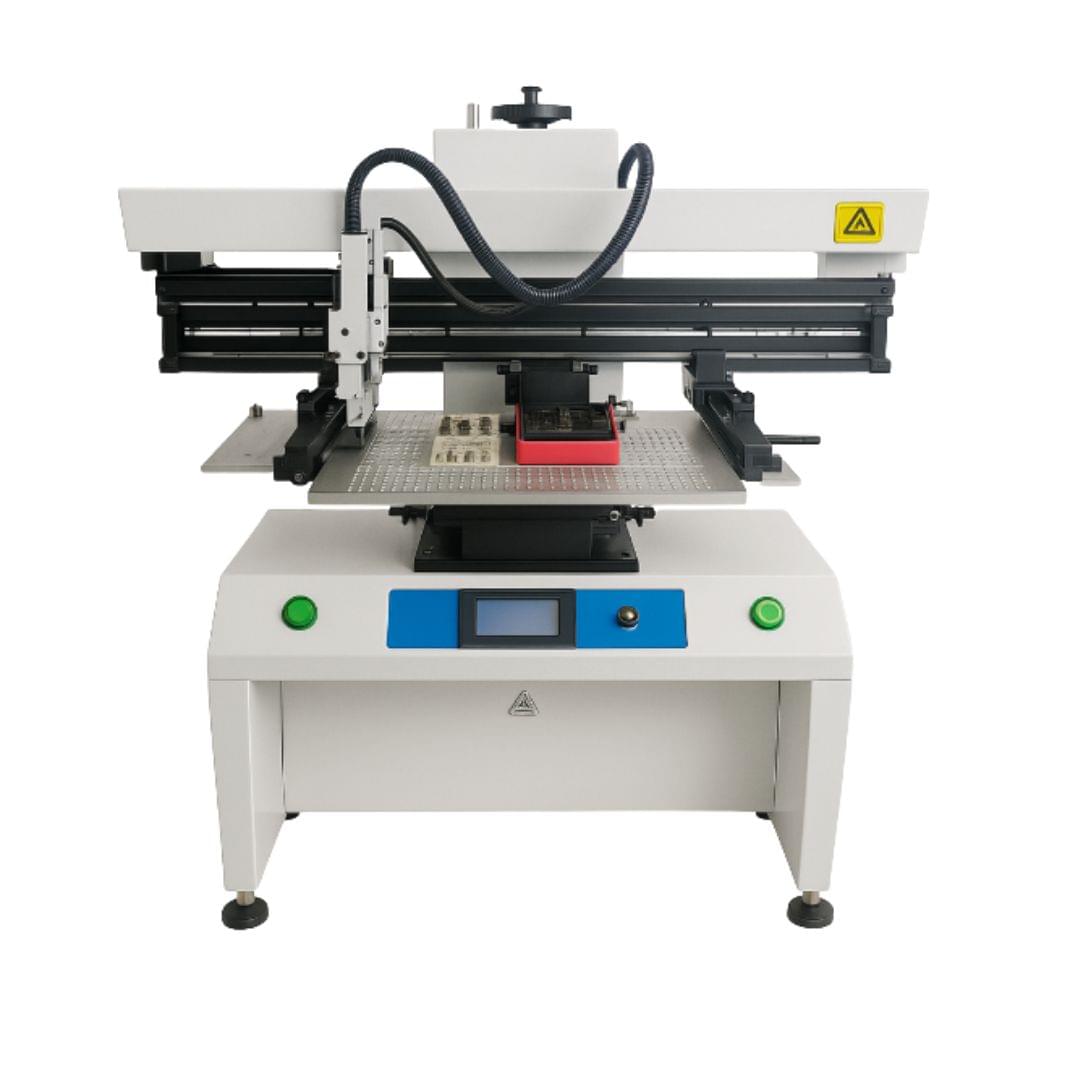

Precision Solder Paste Application with Semi Automatic Solder Paste Printing Machine

In the high-precision world of Surface Mount Technology (SMT), accurate solder paste application is the foundation of a strong and functional PCB. The Semi Automatic Solder Paste Printing Machine, also referred to as a Solder Paste Printing Machine, offered by Kaasu Enterprises, is the ideal solution for electronics manufacturers looking to strike a balance between manual control and automated efficiency.

This equipment is specifically designed for mid-volume PCB production, providing high-accuracy printing, stable alignment, and repeatable performance. For industries that require tight tolerances and optimal throughput, it is a cost-effective and dependable option.

 Technical Specifications at a Glance

 What Is a Solder Paste Printing Machine?

A Solder Paste Printing Machine is used in SMT lines to deposit solder paste onto the PCB pads before component placement. This paste acts as both an electrical and mechanical connector for SMT components. The Semi Automatic version allows for controlled stencil alignment and pneumatic paste printing, bridging the gap between manual labor and fully automated systems.

With Kaasu’s Slder Paste Printing Machine, electronics manufacturers can reduce human error, improve accuracy, and boost throughput, without committing to the high costs of full automation.

 Working Principle of the Machine

The semi automatic solder paste printer operates through a sequence of steps designed for simplicity and precision:

1. PCB Placement: The operator places the PCB onto the adjustable base of the printer.

2. Stencil Alignment: Manual knobs are used to align the stencil precisely over the PCB pads.

3. Paste Application: The pneumatic head drives the squeegee across the stencil to spread the solder paste evenly.

4. Separation: The stencil is lifted away, leaving paste only on the exposed pads.

This method provides consistent results, especially useful for prototypes, pilot runs, and mid-size batch productions.

 Key Features and Benefits

1. High Precision Printing (±0.01 mm Accuracy)

Even the smallest SMT pads are printed with extreme precision, ensuring a strong connection between the PCB and the components during reflow soldering.

2. Semi-Automation for Enhanced Control

Unlike fully automatic machines, the operator retains control over stencil alignment. This makes the machine flexible for different board layouts while still ensuring pneumatic consistency in printing.

3. Time-Efficient Setup

Thanks to its adjustable table and ergonomic design, initial setup and changeovers are fast and straightforward—critical in fast-paced production lines.

4. Wide Compatibility

Supports a printing area of 300 mm × 400 mm and substrate sizes up to 350 mm × 450 mm, covering most standard PCB sizes used in consumer electronics, LED panels, and industrial devices.

5. Durable and Reliable Squeegees

The use of stainless steel or rubber squeegees ensures smooth paste spread and long tool life, even in continuous use.

 Application Areas Across Industries

The Solder Paste Printing Machine by Kaasu Enterprises is designed for versatile application across multiple electronics sectors:

🔹 PCB Assembly Units

Ensures even and accurate paste application for multilayer and double-sided PCBs.

🔹 LED Lighting Industry

Perfect for high-density LED PCBs that require high paste volume and precision for uniform illumination.

🔹 Telecom & IoT Devices

Supports fine-pitch components used in compact, high-performance communication devices.

🔹 Consumer Electronics

Suitable for manufacturing remote controls, mobile phones, computer accessories, and wearables.

🔹 Industrial Electronics

Assists in assembly of controllers, monitoring systems, and embedded devices.

 Control and Operation Interface

One of the hallmarks of this machine is its user-friendly control panel. While the alignment process is manual, the pneumatic control for the squeegee guarantees even force and consistency. Operators can adjust the table height, pressure, and print angle for optimal results based on PCB design.

The machine does not require complex programming or skilled technicians, which makes it ideal for facilities upgrading from manual stencil printing to a more standardized and semi-automated solution.

 Maintenance and Care Guidelines

To keep your Solder Paste Printing Machine in top condition:

• Clean the stencil and squeegee after every use to prevent paste buildup.

• Check alignment knobs periodically for smooth adjustment.

• Inspect pneumatic hoses and valves for air leaks.

• Lubricate moving components as per manufacturer’s recommendation.

• Avoid leaving paste in the machine overnight, as it can harden and damage the stencil.

Regular care not only extends machine life but also ensures continuous production quality.

Semi-Automatic vs Manual & Fully-Automatic Options

The semi automatic machine is ideal for electronics manufacturers who want accuracy and consistency without the complexity and cost of a fully automated line.

Why Kaasu Enterprises?

At Kaasu Enterprises, we understand the real-world needs of Indian and global PCB assembly units. Our Slder Paste Printing Machine delivers European-level quality at Indian-level pricing, backed by:

• Tailored solutions based on your product types

• After-sales support for installation and training

• Availability of spare parts and accessories

• Robust build quality for 24×7 operation

We’re committed to helping your facility become more efficient, precise, and production-ready.

 Conclusion –

If your goal is to improve the speed and accuracy of solder paste application without losing control over the printing process, then the Solder Paste Printing Machine from Kaasu Enterprises is the right investment. It blends automation with hands-on control, ensuring high-precision printing for all types of PCBs.

Ideal for SMT manufacturers looking to scale without compromising on quality, this machine is your step forward in modern electronics assembly. Its robust design, adjustable setup, and reliable performance make it a must-have for mid-volume production lines.
