SMD Nozzle – Precision Handling for Surface Mount Technology

In high-speed, high-accuracy SMT assembly environments, every microscopic detail matters. Among the critical components of pick-and-place machinery, the SMD Nozzle stands out as a silent workhorse. It is the direct interface between the machine and the component—responsible for gripping, lifting, and placing components onto PCBs with flawless accuracy.

At Kaasu Enterprises, we provide high-precision SMD Nozzles compatible with major SMT platforms. Built using durable, anti-clog materials, our nozzles ensure consistent pickup and placement, even for the smallest or most delicate surface mount devices.

Product Introduction

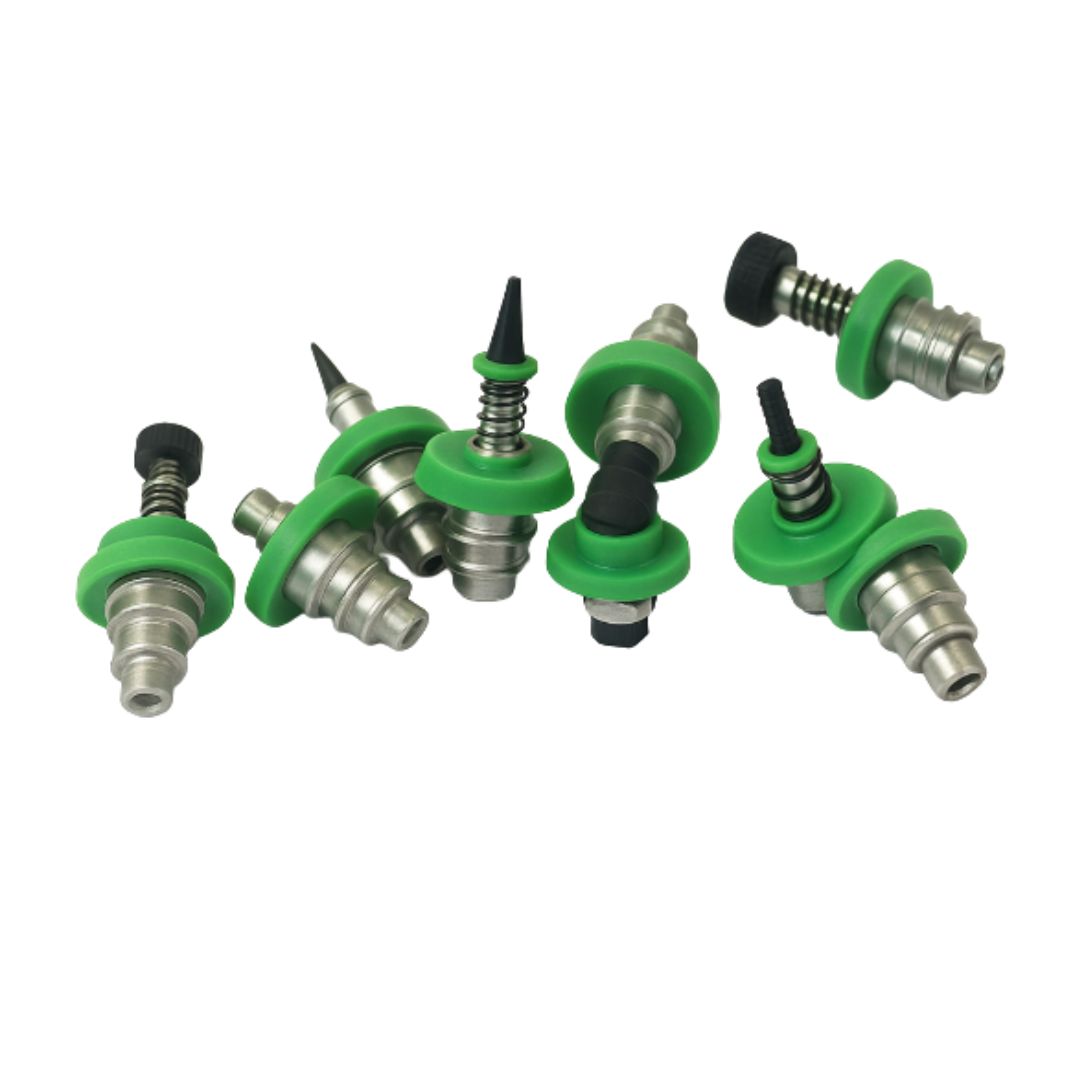

The SMD Nozzle is a vacuum-assisted tool used in SMT pick-and-place machines to hold and transfer surface mount components during PCB assembly. Designed to work at high speed with micron-level accuracy, these nozzles are available in a variety of sizes and materials depending on the machine type, component shape, and handling requirements.

Whether you’re assembling smartphones, automotive electronics, or industrial PCBs, choosing the right nozzle can greatly affect placement precision and cycle time.

Product Specifications –

Purpose and Function in SMT Assembly

SMD Nozzles perform a simple but crucial function—they lift components from feeders using vacuum suction and accurately place them onto a printed circuit board. The nozzle tip is responsible for:

• Securing the component with vacuum without damaging it

• Aligning perfectly with camera systems for accurate vision correction

• Releasing the component onto the solder-pasted PCB pad with precision

These actions are repeated thousands of times per hour. Thus, the nozzle’s design, size, and material must ensure reliable performance under rapid cycles.

Compatible with All Major SMT Machines

Kaasu Enterprises offers SMD Nozzles designed for seamless integration with the industry’s leading pick-and-place machines, including:

• Juki SMT Machines

• Yamaha High-Speed Pick-and-Place Systems

• Samsung Chip Mounters

• Fuji and Panasonic Platforms

Each nozzle is precision-machined to meet manufacturer-specific dimensions and vacuum force requirements. Whether it’s a standard model or a custom-engineered version, we ensure compatibility without compromise.

Material Options and Their Advantages

To handle the wide range of SMD components—ranging from 0201 chips to large ICs—our nozzles are made from different high-performance materials. The choice of material directly impacts durability, grip strength, and resistance to wear.

Stainless Steel Nozzles

• Corrosion-resistant and sturdy

• Ideal for general-purpose SMD pickup

• Long service life even in high-volume lines

Ceramic Nozzles

• Excellent heat resistance

• Lightweight for high-speed head movement

• Non-reactive, ideal for sensitive components

Rubber Tip Nozzles

• Soft, flexible contact for irregular shapes

• Prevents damage to fragile parts like LEDs or BGA chips

• Customizable for special grip requirements

Each material serves a specific production need, and Kaasu Enterprises can guide you in selecting the right configuration for your components and process.

Nozzle Size Variants

SMD Nozzles come in various tip sizes depending on the part they’re designed to pick. Common sizes include:

• 503 Nozzle: Used for ultra-small 0201/0402 resistors and capacitors

• 504 Nozzle: Ideal for small ICs, SOTs, and crystal oscillators

• 505 Nozzle: Supports larger SMDs such as connectors or QFPs

• 506 Nozzle: Custom for specific part geometries or large components

These sizes are standardized but can be customized to match rare or non-standard component shapes.

Features That Boost Production Efficiency

Our SMD Nozzles are not just parts—they are engineered tools that improve line reliability and reduce placement errors.

Precision Engineered

Tight dimensional control ensures that the nozzle aligns perfectly with the component and the vision system. This improves placement accuracy and reduces rejects.

Anti-Clog Design

Fine filters and smooth internal vacuum paths minimize the risk of clogging due to solder paste mist, dust, or static particles.

Easy Installation and Replacement

All our nozzles are built for tool-free replacement, minimizing downtime during changeovers or maintenance. Whether you’re running short batches or long production runs, nozzle changes are fast and simple.

High Durability

From stainless steel to reinforced ceramic, the materials used can handle high pick-and-place cycles with minimal wear, offering a low cost of ownership.

Applications in Real-World Electronics Production

The SMD Nozzle is used in virtually every type of SMT production setup:

• Consumer Electronics: For smartphones, tablets, wearables

• Automotive Electronics: For ECUs, dashboard displays, and infotainment modules

• Industrial Control Boards: PLCs, drives, and industrial sensors

• LED Assemblies: For light panels, indicators, and lighting circuits

• Medical Devices: Where micro-size components and zero-defect rates are essential

Regardless of the industry, the performance of the pick-and-place machine is only as good as the quality of the nozzle installed.

When to Replace an SMD Nozzle?

Regular use leads to gradual wear, even in the best nozzles. Look out for these signs to know it’s time for a replacement:

• Inconsistent vacuum pickup

• Misalignment in placement

• Damaged or deformed nozzle tip

• Component drops or misfeeds

Timely replacement ensures ongoing line efficiency and prevents rework or component damage.

Why Choose Kaasu Enterprises for SMD Nozzles?

Kaasu Enterprises offers more than just parts—we offer precision-engineered solutions backed by knowledge of real-world SMT production challenges.

With us, you get:

• Nozzles made to OEM specifications

• Quick availability of standard and custom sizes

• Expert guidance on material and compatibility

• Competitive pricing and bulk order support

• Nationwide delivery with reliable packaging

Each nozzle is individually inspected to ensure quality and consistency.

Conclusion –

The SMD Nozzle may be small, but it performs a mission-critical function in SMT assembly lines. It ensures that every surface mount component is picked, held, and placed with exacting precision. When precision counts—and it always does in electronics production—the quality and compatibility of the nozzle can make all the difference.

Whether you’re scaling up production, troubleshooting misplacements, or simply preparing for regular maintenance, Kaasu Enterprises is your trusted source for durable and high-precision SMD Nozzles. Our wide compatibility range and material options make it easy for SMT manufacturers to keep their lines running efficiently and defect-free.
