Single Head Dispensing Robot

Single Head Dispensing Robot –

In the age of miniaturization and precision engineering, accurate material application is vital in sectors like electronics, automotive, and LED manufacturing. The Single Head Dispensing Robot offered by Kaasu Enterprises is an intelligent, high-precision solution designed for automating the application of adhesives, solder paste, epoxy, and UV-sensitive materials across diverse substrates and component assemblies.

Tailored for compact spaces and optimized for operational efficiency, this 3-axis robot simplifies manual dispensing while drastically improving repeatability and consistency. Whether for PCB soldering, conformal coating, or fine adhesive application, the Single Head Dispensing Robot is engineered to meet the growing demands of high-speed production lines and prototyping labs alike.

Technical Specifications – Single Head Dispensing Robot

What is a Single Head Dispensing Robot?

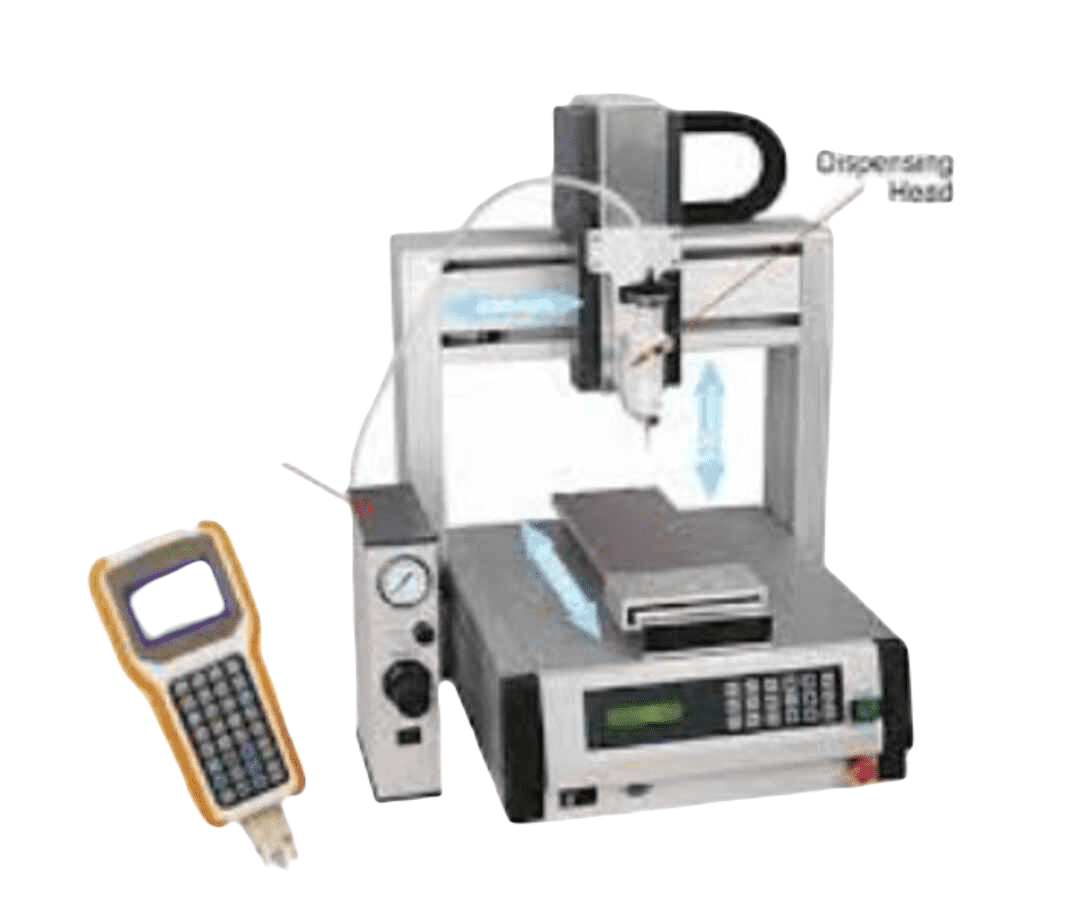

A Single Head Dispensing Robot is an automated dispensing system featuring a single precision-controlled applicator head. It is programmed to deposit adhesives or other fluids with exceptional control and accuracy onto targeted areas. The 3-axis system enables smooth, coordinated movements across the X, Y, and Z axes, ensuring optimal material placement and consistent flow control across each cycle.

This machine is especially suited for operations that demand fine dotting, line tracing, or fill dispensing on intricate parts like printed circuit boards, microchips, LED strips, and miniaturized electronic modules.

Core Functionalities and Features

1. High-Precision Dispensing

Equipped with a fine-tuned motion controller and servo motors, the Single Head Dispensing Robot guarantees precise output with an accuracy of ±0.02 mm. This level of precision ensures consistent dispensing of even the smallest volumes, minimizing waste and enhancing product quality.

2. Flexible Material Compatibility

From UV adhesives to conductive epoxies, and solder pastes to liquid glues, this robot supports a variety of materials, enabling its deployment across several industries including medical electronics, mobile component assembly, and industrial automation.

3. User-Friendly Programming Interface

Operators can program the robot using either a teach pendant (for point-to-point command entry) or a PC-based software platform that supports advanced pattern design, dot/line trajectory editing, and flow rate adjustments. The intuitive interface minimizes the learning curve and maximizes process control.

4. Optimized Working Area

The working envelope of approximately 200 × 200 × 100 mm offers sufficient space for handling small to mid-sized boards and parts. Larger models with expanded range can be selected based on production requirements.

5. Automated Control and Repeatability

The built-in step-and-repeat system allows for the repetition of programmed routines, enabling high-volume production with minimum manual intervention. Consistency across 1000s of units ensures adherence to quality standards in every batch.

Key Advantages of Using a Single Head Dispensing Robot

✔ Increased Throughput

Automated dispensing is significantly faster than manual application, especially for small intricate components. This leads to higher productivity per shift.

✔ Improved Quality Control

The robot ensures uniform bead thickness and placement accuracy, reducing defects caused by over- or under-application of adhesives.

✔ Reduced Labor Costs

Once programmed, the machine runs continuously with little supervision. This reduces dependency on skilled manual operators for critical dispensing jobs.

✔ Material Efficiency

Controlled dispensing ensures minimal wastage of expensive materials such as conductive pastes or optically clear adhesives.

✔ Consistent Results

Unlike manual methods where output varies with human skill and fatigue, robotic dispensing offers unwavering repeatability over thousands of cycles.

Industries and Applications

The versatility of the Single Head Dispensing Robot makes it ideal for the following sectors:

Installation and Integration

The Single Head Dispensing Robot can be easily integrated into any semi-automated or fully automated production line. Installation involves:

• Mounting the machine on a flat workspace

• Connecting to a standard AC power outlet

• Configuring dispensing parameters through teach pendant or software

• Calibrating Z-height for optimal nozzle positioning

Depending on the application, the system can be used with external syringe controllers, pressure tanks, or pneumatic systems for material feed.

Maintenance and Care Guidelines

Proper maintenance ensures longevity and performance consistency. Key recommendations include:

• Daily cleaning of the nozzle to prevent clogging

• Routine inspection of stepper motor belts and X/Y slides

• Sensor calibration check every 100 operational hours

• Software backup of dispensing programs to avoid data loss

Kaasu Enterprises also offers AMC (Annual Maintenance Contracts) and remote support options for enterprise clients.

Why Choose Kaasu Enterprises for Dispensing Automation?

Kaasu Enterprises brings extensive expertise in automation solutions, offering tailored equipment for industrial electronics assembly. With a track record of serving OEMs, contract manufacturers, and R&D labs, we guarantee:

• Prompt technical support

• High-quality parts and spares

• Software training and operator onboarding

• Competitive pricing for bulk orders

We ensure all our dispensing systems meet international standards of precision and durability.

Conclusion

In precision-driven manufacturing environments, the Single Head Dispensing Robot offers the perfect balance of performance, flexibility, and ease of integration. With its advanced 3-axis control, user-friendly interface, and multi-material compatibility, this robot serves as an essential asset in modern production systems.

Whether you’re a small-scale electronics assembler or a high-volume contract manufacturer, upgrading to automated dispensing ensures repeatable performance, material savings, and increased production speeds.
