Screw Feeder

Boost Assembly Line Efficiency with Advanced Screw Feeder Machines

In today’s competitive manufacturing landscape, every second counts. One of the most time-consuming aspects of manual assembly is the repetitive process of picking and placing screws. This is where a screw feeder machine becomes essential. Designed to automate the screw dispensing process, Kaasu Enterprises’ Screw Feeder delivers consistent, fast, and accurate feeding, significantly improving assembly efficiency.

Whether you’re manufacturing mobile phones, electronic devices, toys, or small appliances, our screw feeder machine is engineered to support high-volume assembly with minimum manual intervention.

 Product Overview

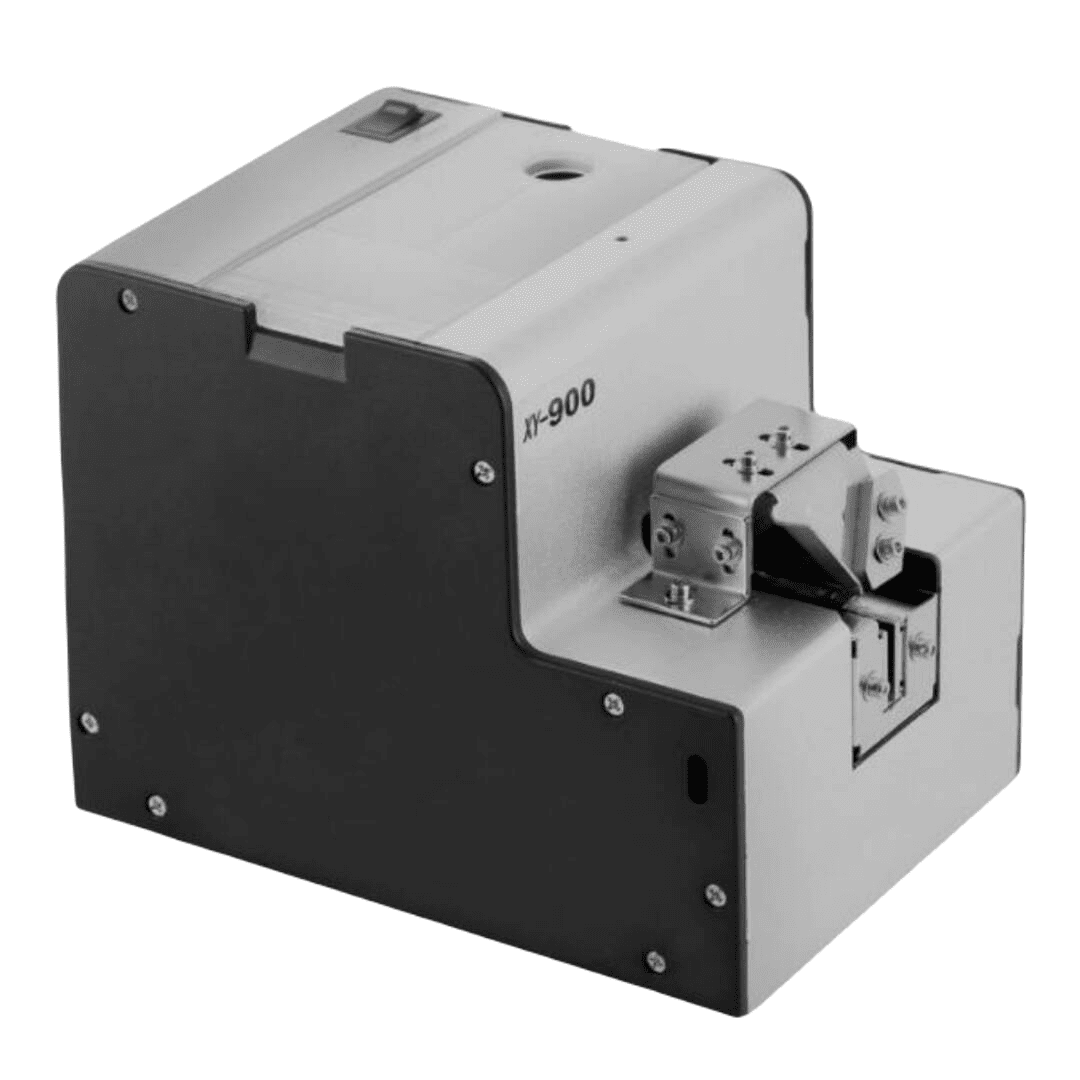

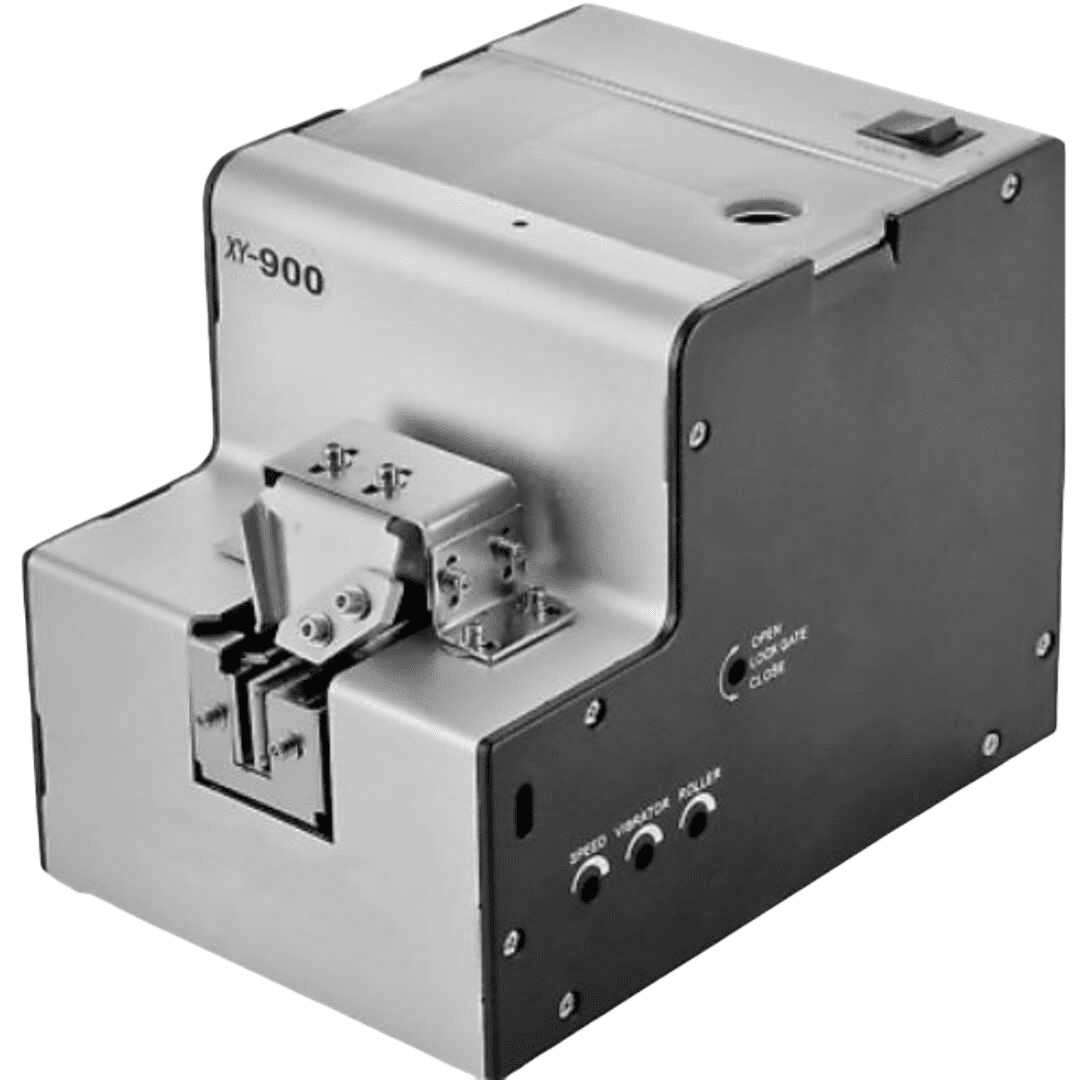

The screw feeder machine by Kaasu Enterprises is available in automatic and semi-automatic models, tailored to suit diverse production environments. Compact, lightweight, and highly efficient, it uses vibratory or air-blow feeding mechanisms to deliver one screw at a time to the operator or tool with precision.

This automation significantly reduces handling time, improves screw placement speed, and enhances the consistency of screw availability.

Product Specifications – At a Glance

 What Is a Screw Feeder Machine?

A screw feeder machine is an automated device designed to sort, align, and feed screws in a controlled and efficient manner. It eliminates the need for manual screw picking and helps operators or screwdrivers receive screws directly at the tool tip or from a feeding chute.

The machine works by using vibratory trays or air-blow systems to separate and orient screws. Once in position, screws are fed to the operator, robotic arm, or tightening equipment.

 How It Works

There are typically two major screw feeding mechanisms available in Kaasu’s machines:

▪ Vibratory Track Feeder

The screws are loaded into a hopper where a vibratory track guides them forward in a specific orientation. A sensor monitors screw delivery and stops/start feeding as needed.

▪ Air-Blow Feeder

Screws are directed through a tube using compressed air, shooting them to the tightening tool at high speed. This method is best for robotic and high-speed operations.

Once the screw reaches the endpoint, the control system ensures only one screw is dispensed at a time, avoiding jams or multiple outputs.

 Key Features and Functional Advantages

✅ High-Speed Dispensing

With a feeding speed of 1.2 – 2.0 seconds per screw, Kaasu’s screw feeder significantly reduces operator wait time, speeding up the overall assembly process.

✅ Supports Multiple Screw Sizes

Compatible with M1.0 to M5.0 screws, this machine covers a broad range of fastening requirements across industries.

✅ Compact and Portable

Despite its industrial-grade performance, the screw feeder has a compact footprint, making it ideal for bench-top setups or integration into existing workstations.

✅ Smart Sensor Control

An integrated sensor system controls the feeding cycle, starting or stopping screw supply automatically depending on tool demand.

✅ User-Friendly Design

Minimal training is required. Operators simply load the screws into the hopper and begin the operation. The feeder does the rest, reducing fatigue and human error.

 Applications in Manufacturing Sectors

Kaasu’s screw feeder machine is trusted by manufacturers across multiple sectors for its performance and flexibility:

1. Electronics Assembly

Ideal for assembling PCBs, sensors, LED modules, and other electronic devices where screw consistency and speed are essential.

 2. Toy Industry

With toy components often using small M1.5–M3 screws, the feeder ensures safe, accurate feeding without damaging delicate parts.

 3. Consumer Appliances

For products like remote controls, fans, chargers, and small kitchen appliances, consistent screw delivery enhances assembly throughput.

 4. Automotive Electronics

Used in assembling dashboards, infotainment systems, and control panels, where production speed and torque accuracy are critical.

 Safety and Durability

Kaasu’s screw feeder machines are built to run 24/7 with minimal downtime. The components are made from wear-resistant materials, and the internal mechanics are protected by a dust-resistant enclosure.

The sensor-based feeding avoids overloading or jamming, and the vibratory tray or air-blow pathway ensures the longevity of the unit.

 Installation and Maintenance

Installation:

• Place on a stable, vibration-free surface.

• Connect to AC 220V or required DC power supply.

• If using an air-blow model, attach a clean compressed air source.

• Load screws into the hopper and select operating mode.

Maintenance Tips:

• Clean the vibratory tray or air tube regularly.

• Remove stuck screws to avoid jamming.

• Inspect the sensors and control board weekly.

• Lubricate moving parts if recommended in the manual.

With basic maintenance, Kaasu’s screw feeder machine will operate efficiently for years with consistent performance.

Automatic vs Semi-Automatic Feeder: Which One to Choose?

For small to medium-scale assembly units, the semi-automatic model is often ideal. Large factories and robotic production lines may prefer the fully automatic version.

 Why Choose Kaasu Enterprises?

Kaasu Enterprises is committed to offering smart assembly automation solutions. Our screw feeder machines combine precision engineering, cost-efficiency, and user-friendly design to help manufacturers of all sizes achieve faster cycle times and improved product quality.

• Multiple models for different screw sizes and feeding needs

• Customizable solutions for unique applications

• Full technical support and operational training

• Quick delivery and readily available spares

• Trusted by clients across India and beyond

 Conclusion –

If you’re looking to optimize your assembly line, reduce manual errors, and increase screw placement speed, the screw feeder machine from Kaasu Enterprises is the answer. With its versatile features, durable design, and proven performance, it supports everything from manual assembly stations to fully automated production cells.

As the need for speed, precision, and consistency grows in manufacturing, investing in the right automation tool becomes critical. Kaasu’s screw feeder machine ensures you’re always ahead in quality and productivity.
