PCB Drill & Router Machine – High-Speed PCB Drilling

As electronic devices become more compact and functionally complex, the demand for precise PCB fabrication tools continues to rise. Whether it’s drilling ultra-small vias, shaping complex contours, or separating individual circuit boards with speed and accuracy—Kaasu Enterprises offers a dependable solution in the form of its high-performance Drill & Router machines.

Engineered to deliver unmatched precision, these machines are built for reliability, performance, and adaptability across a wide range of printed circuit board materials and configurations.

An Overview of the Drill & Router

The PCB Drill & Router Machine is a hybrid tool designed for two main tasks in PCB manufacturing:

1. Drilling holes of various diameters for component leads, vias, and mounting points.

2. Routing – profiling the board, cutting slots, and shaping the PCB edges as per design requirements.

Available in both CNC-controlled and manual variants, these machines are built to handle FR4, FR1, CEM1/CEM3, aluminum-backed boards, and more. Whether you’re a high-volume manufacturer or an R&D setup working on rapid prototyping, this machine adapts to your operational scale.

Why the Drill & Router is a Critical Part of PCB Production

• Eliminates human error and inconsistencies during board separation and hole formation.

• Offers scalable operation—from small prototypes to bulk manufacturing.

• Saves time through automation and programmable movement.

• Enables tight-tolerance hole placement essential for high-frequency and multilayer boards.

Product Specifications

Here’s a detailed technical snapshot of the Drill & Router machine offered by Kaasu Enterprises:

CNC vs. Manual Drill & Router Machines

CNC-Driven Models

Kaasu’s CNC Drill & Router models are designed for high-speed, high-accuracy work. Operators can upload G-code files to execute precise drill patterns and cut profiles with minimal intervention. The automation allows:

• Multi-layer and high-density PCB processing

• Consistent hole size and position

• High throughput for industrial lines

Manual Machines

For labs, repair stations, or educational institutions, manual drill/router systems offer an affordable and flexible tool for basic routing and drilling needs. While not automated, they provide dependable control over cutting and drilling depth when accuracy is still essential.

Spindle Technology and Blade Control

The machine’s spindle is a critical component that determines speed, accuracy, and durability. You can choose between:

• Air Bearing Spindles: These offer ultra-high-speed operation with minimal vibration. Perfect for ultra-small hole drilling in multi-layer boards.

• Ball Bearing Spindles: More rugged, cost-effective, and ideal for routing applications or low-speed operations.

Precision ball-screw movement on all axes ensures tight tolerances and controlled motion, essential for today’s complex circuit layouts.

Applications in the Electronics Industry

The Drill & Router machine is vital in several phases of PCB fabrication and assembly:

1. Through-hole Component Drilling

For PCBs that require mounted components (like connectors, transformers, etc.), accurate holes are necessary. These machines can drill various sizes (as small as 0.2 mm) consistently across multiple boards.

2. Routing & Board Profiling

After components are mounted or soldered, the PCB panels are routed into their final shape. The machine can cut straight lines, curves, internal slots, and mounting notches.

3. Edge Milling and De-paneling

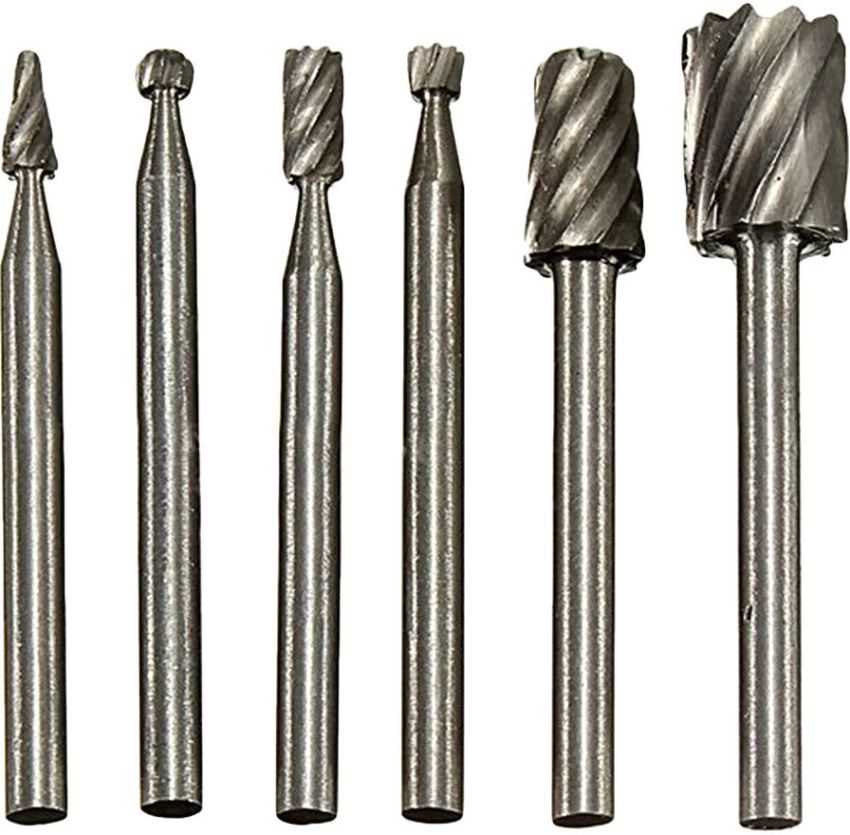

Using specialized routing bits, the machine can cleanly separate multiple PCBs from a single panel with minimal stress on soldered components.

4. LED, Automotive & RF Boards

Complex board materials like aluminum-backed LEDs or RF boards require custom shapes. These routers handle such materials with ease, supporting unique mechanical outlines or shielding cuts.

Built-in Dust Collection for Clean Operations

Dust and debris during routing or drilling can impact both machine performance and product quality. Kaasu’s machines support integrated vacuum suction or external dust collectors, ensuring:

• Clean board surfaces post-routing

• Extended tool life

• Safer work environments for operators

Optional duct attachments and dust-proof enclosures are available for industrial hygiene compliance.

Customization Options Available

Kaasu Enterprises provides tailored configurations based on:

• Table size requirements

• Spindle type preference

• Drill bit compatibility

• Speed settings

• Automated tool changers (in CNC models)

• Dust management systems

This customization makes the Drill & Router suitable for:

• Small-scale labs

• High-speed production environments

• Educational training centers

Advantages of Choosing Kaasu Enterprises

Kaasu Enterprises is known for delivering high-precision, industrial-grade solutions with a focus on:

• Durability – Machines built with robust enclosures and high-quality spindles

• Affordability – Cost-effective options without compromising on performance

• Local Support – Based in Delhi, we offer technical assistance, spare parts, and quick delivery across India

• Product Knowledge – Our experienced team understands electronics manufacturing needs and helps you select the right tools

Maintenance & Operation Guidelines

To maintain the machine’s performance over time:

• Clean debris after each use, especially near spindle and drive rails

• Replace dull drill bits to avoid board chipping

• Lubricate mechanical parts regularly

• For CNC models, keep firmware/software updated

Kaasu provides operational manuals, safety checklists, and maintenance guides to ensure hassle-free use.

Conclusion

The PCB Drill & Router Machine from Kaasu Enterprises is more than just a drilling tool—it’s a reliable partner in modern PCB production. From hole drilling and edge cutting to full-profile routing, this machine provides unmatched precision and speed. With flexible configurations, advanced control systems, and high-end spindles, it’s the right solution for manufacturers, prototyping labs, and educators alike.

If your PCB production demands are evolving, now’s the time to upgrade your setup with a tool that delivers consistently accurate results, long-term durability, and cost-efficiency.
