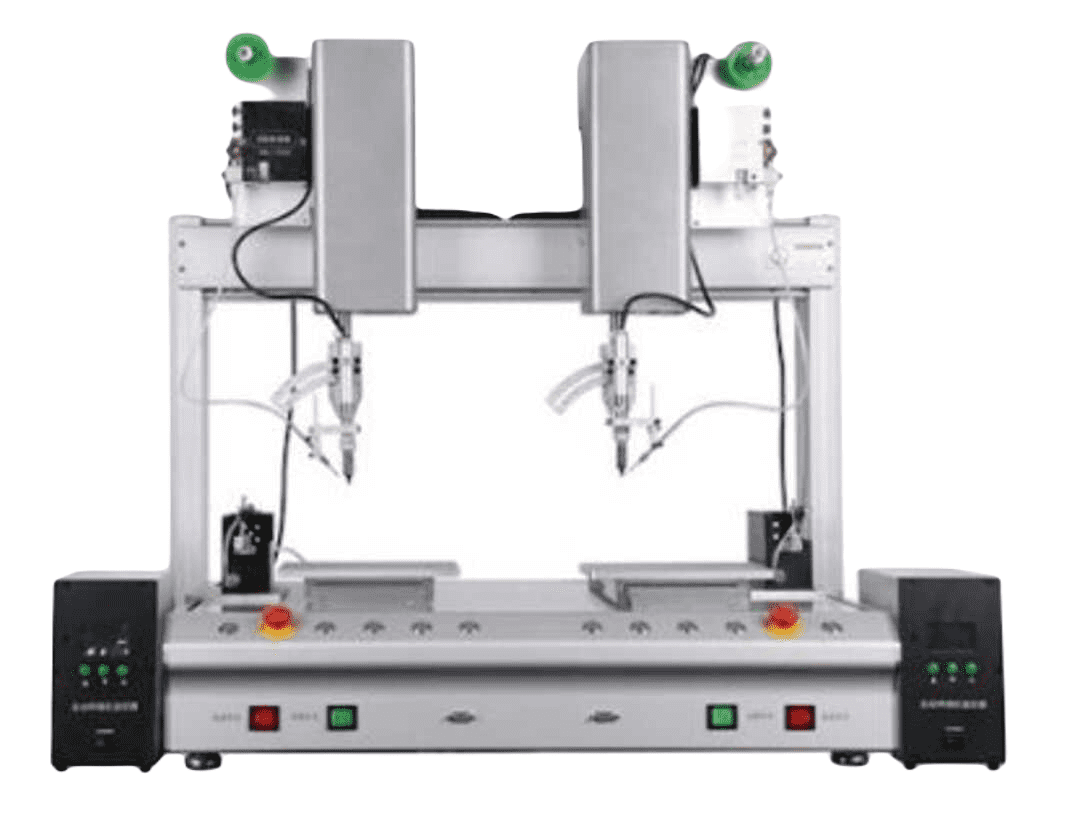

Double Head Dispensing Robot

Double Head Dispensing Robot – Accelerating Precision with Dual Efficiency

In the constantly evolving landscape of electronics manufacturing, efficiency, speed, and precision form the foundation of quality production. Kaasu Enterprises proudly presents the Double Head Dispensing Robot, a dual-nozzle automated system designed to revolutionize dispensing operations in industries demanding high throughput and micron-level accuracy.

This advanced machine integrates two independent dispensing heads into a compact robotic platform, delivering parallel operation without compromising precision. Whether you are working with adhesives, conductive pastes, or thermal materials, this machine allows simultaneous application, reducing cycle time and enhancing output quality.

Technical Specifications – Double Head Dispensing Robot

Overview of Double Head Dispensing Technology

The Double Head Dispensing Robot is a breakthrough in parallel dispensing automation. Unlike single-head machines, this model enables two different operations or the same task to run concurrently, allowing for synchronized or independent functioning of each head. The robotic system is optimized for both speed and control, making it ideal for multilayered assemblies, intricate substrates, and dense PCB layouts.

Its high-precision capabilities ensure that each drop, line, or bead of adhesive is placed exactly where it’s needed, eliminating material wastage and boosting yield rates.

Key Functional Capabilities

1. Independent Dual Nozzles

Each head is operated individually, which allows for dispensing two different materials or mirroring the same material onto different areas of the workpiece. This flexibility enables higher throughput and greater process diversity.

2. Precision Engineering

Powered by high-accuracy stepper or servo motors and ball screw drives, the robot ensures a placement precision of up to ±0.02 mm. This is critical in microelectronic assembly and precision module bonding.

3. Scalable Working Platform

With a working area of 300 × 300 × 100 mm, this model supports mid-to-large scale PCB panels, LED modules, battery packs, and more. For production lines with variable-size components, customizable platforms are available.

4. Smart Control Interface

The robot is programmable through a teach pendant or PC software, enabling both novice users and automation professionals to build dispensing routines with adjustable speed, delay, Z-height, and pattern shapes. G-code compatibility provides additional integration benefits for automated workflows.

5. Versatile Material Handling

Supporting everything from UV adhesives and conductive ink to epoxy resins and thermal paste, the system is compatible with syringe-based, cartridge-fed, or tank-supplied dispensing systems. This versatility makes it ideal for hybrid electronics, wearable tech, and sensor-based devices.

Operational Benefits of Double Head Dispensing Robots

Applications Across Industries

The Double Head Dispensing Robot finds application in a broad range of modern manufacturing fields. Here are a few real-world uses:

• Consumer Electronics: Camera module sealing, display bonding, battery pack gluing.

• Automotive Electronics: Wire harness coating, ECU PCB encapsulation, sensor sealing.

• LED Manufacturing: Dual strip LED bonding, lens placement, optical glue application.

• Telecommunication Devices: RF shielding compound dispensing, PCB bonding.

• Medical Devices: Capsule sensor sealing, catheter coating, microfluidic adhesive application.

Integration into Production Lines

Integration of the Double Head Dispensing Robot into an existing or new assembly line is seamless. The compact design makes it table-mountable or installable within inline conveyor systems. The modular hardware allows easy connection with:

• Material feeders

• Barcode scanners

• Conveyor belts

• Pick-and-place robots

Depending on your industry and volume requirement, the machine can be set up for batch, semi-continuous, or fully continuous operation.

Maintenance & Care

Routine care of the Double Head Dispensing Robot ensures long-term reliability and optimal performance. Some key practices include:

• Cleaning dispensing nozzles after each production cycle

• Checking calibration alignment weekly

• Replacing filters and syringe barrels periodically

• Updating software/firmware for enhanced functionality

At Kaasu Enterprises, we offer training sessions and annual maintenance contracts (AMC) to ensure your team stays prepared and your equipment remains in top condition.

Why Choose Kaasu Enterprises?

As a trusted manufacturer and supplier of advanced assembly equipment, Kaasu Enterprises brings experience, technical expertise, and a commitment to performance.

With every Double Head Dispensing Robot, you get:

• Factory calibration and testing

• Application-specific customization

• Installation and remote technical support

• Long-term spare parts availability

• Fast delivery and transparent pricing

We understand that precision is not a luxury but a necessity in modern electronics. That’s why our systems are crafted for durability, repeatability, and user ease.

Conclusion

The Double Head Dispensing Robot is more than a machine—it’s a productivity enabler. Whether you aim to accelerate production, improve bonding precision, or reduce manual labor, this dual-head solution delivers tangible results. From R&D to high-volume lines, it ensures flawless dispensing performance every time.
