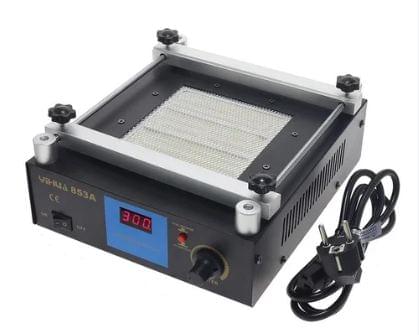

BGA Rework System 853+ – Precision Chip Repair with Advanced Thermal Control

In the world of modern electronics and PCB maintenance, repairing Ball Grid Array (BGA) chips is one of the more delicate and demanding tasks. A misstep during de-soldering or re-balling can render an expensive board useless. That’s why professionals trust the BGA Rework System 853+, available from Kaasuenterprises, to safely and accurately handle BGA components, SMD chips, and other sensitive parts with minimal risk.

This comprehensive rework system integrates pre-heating and hot-air technologies into a compact, ESD-safe solution—ideal for electronics service centers, repair labs, and design teams. Let’s explore why it stands out.

▶ Product Summary

Why BGA Rework Demands Specialized Equipment

BGAs are commonly used in high-performance chips such as CPUs, GPUs, and memory ICs. These components are mounted flat on boards, making traditional soldering methods insufficient for rework. The BGA Rework System 853+ provides:

1. Controlled Pre-heating: Prevents substrate warping and reduces thermal stress.

2. Precision Hot-Air Nozzles: Focused heat application ensures clean desoldering without harming adjacent components.

3. Adjustable, Stable Temperature Output: Enables handling a wide range of solder types, including lead-free alloys.

4. Consistency & Repeatability: Digital feedback loops maintain setpoint temperature—even under load.

Selecting a quality rework tool is essential for high-value PCBs in industrial, telecommunications, or computing hardware.

Core Capabilities of the 853+ System

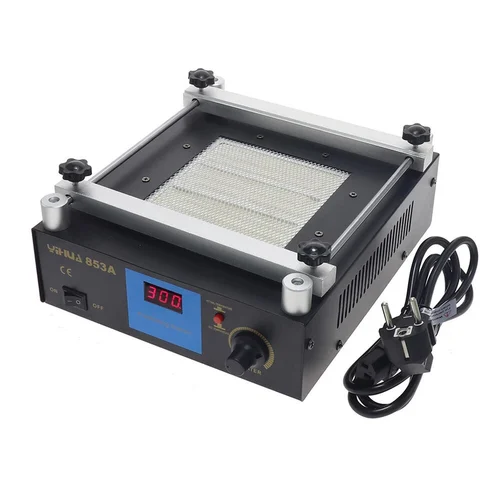

Infrared Pre-Heating Stage

Before hot air is applied, boards need gentle thermal elevation to around 150–200 °C. The onboard infrared pre-heater achieves this uniformly up to ~400 °C, which:

• Prevents solder shock during hot-air application

• Reduces vaporization of solder flux

• Ensures a rapid yet safe de-solder cycle

Precision Hot-Air Gun

The system’s hot-air gun delivers focused heat up to ~480 °C—enough to reflow lead-free solder without damaging PCBs or components. This stage enables:

• Safe removal of BGA and QFP chips

• Controlled reinstallation with even solder spread

• Solder bridge prevention through precise nozzle placement

Digital Temperature Control

A programmable controller, with LED readouts, allows technicians to:

• Set custom thermal profiles for different boards

• Monitor real-time temperature during operation

• Maintain stable thermal conditions even in case of drafts or load changes

Compact & Ergonomic Construction

The 853+ features:

• A small footprint for tight bench spaces

• ESD-safe housing to protect sensitive ICs

• Adjustable nozzles and PCB jigs for versatile use

This ensures it fits both professional labs and on-site repair environments.

Real-World Applications

The rework station adds value across many settings:

Consumer & Industrial Electronics Repair

From smartphones to industrial controllers, faulty chips can be easily replaced—saving the board at a fraction of the cost of replacement.

R&D and Prototyping

Test, replace, or swap chips during prototype cycles without waiting on production fabs.

Quality Assurance & Diagnostics

Boards rejected during QA can be reworked quickly, avoiding full-carrier scrapping and saving costs.

High-Value PCB Maintenance

Used in avionics, medical scanners, and power electronics—where repairability and reliability are essential.

How to Use: Best Practice Workflow

1. Mount PCB on the board holder above the pre-heater.

2. Set infrared pre-heat temperature (usually 150–200 °C).

3. Allow thermal soak for 1–2 minutes, gently warming the board.

4. Pick correct hot-air nozzle matching chip size.

5. Position hot-air above chip and start airflow and heat.

6. Lift chip with vacuum tool once solder melts.

7. Deactivate heat and let board cool—either naturally or with a fan.

8. Clean pads, apply solder paste, align replacement chip, and reflow again.

9. Cool down again before functional testing.

This workflow balances speed and protection for secure rework.

Maintenance & Safety Tips

• Use thermal paste or silicone mat for consistent heat conduction.

• Calibrate using a thermocouple when idle.

• Replace heating elements and filters regularly.

• Operate in well-ventilated areas to avoid harmful fumes.

• Always discharge static via the ESD stand and use grounded tools.

Advantages Over Alternative Fixes

Compared with hot-air rework alone, or hot plate setups, the 853+ provides:

• Better uniform heating and chip alignment

• Fewer board warp issues

• Reduced thermal radiation

• Profiles for consistent repeatability

• Focused airflow to protect surrounding components

Its dual-zone, digitally controlled approach delivers more predictable outcomes.

Kaasuenterprises’ Value Proposition

Kaasu offers:

• Verified industrial-grade tools tested for stable thermal performance

• Full one-year manufacturer warranty

• Technical consulting for process setup and tip selection

• Quick nationwide logistics and technical backup

• Bulk pricing and support for multi-station setups

They serve service centers, FAE teams, and electronics labs as a trusted partner.

Conclusion –

The BGA Rework System 853+ addresses every critical need in modern PCB repair and rework scenarios. It combines pre-heating and hot-air control, adjustable nozzles, hands-free workflows, and ESD-safe operation into a compact solution. Whether restoring a smartphone logic board or prototyping a new GPU chipset, the 853+ delivers reliable, repeatable, and efficient results.

choose the BGA Rework System 853+ from Kaasuenterprises today, and empower your electronics maintenance and prototyping capabilities.
